Classified Adverts Web App

This project was part of a web server programming module that taught server-side programming techniques and related subjects such as HTTP, HTML forms, N-Tier architecture and database access. A classified adverts web application for an online newspaper was developed to demonstrate all of these techniques. The site required the following features:

  • Any public user can view all of the advertisements without needing to log on.
  • Only subscribed users can place new advertisements.
  • A search facility is required.
  • Adverts past their expiry date should be automatically deleted.
  • An administration facility is required that enables a site administrator to reset passwords, delete users and edit or remove advertisements.

The first task was to design the database, this was done using entity-relationship modelling techniques and normalisation. The database was created using MySQL. As this was a reasonably complex application, with a lot of use cases, a lot of thought had to be put into the design. I had noticed how complex PHP code can become when it is intertwined within HTML. You end up with a lot of little ‘islands’ of PHP amongst the HTML which is difficult to maintain and doesn't enable team working between programmer and designer.

An MVC architecture is one way of circumventing this issue. A lot of MVC frameworks are available but I wanted to come up with my own design to gain a deeper understanding. I sketched out some use case scenarios to picture how people would interact with the site. This then helped me come up with the required pages.

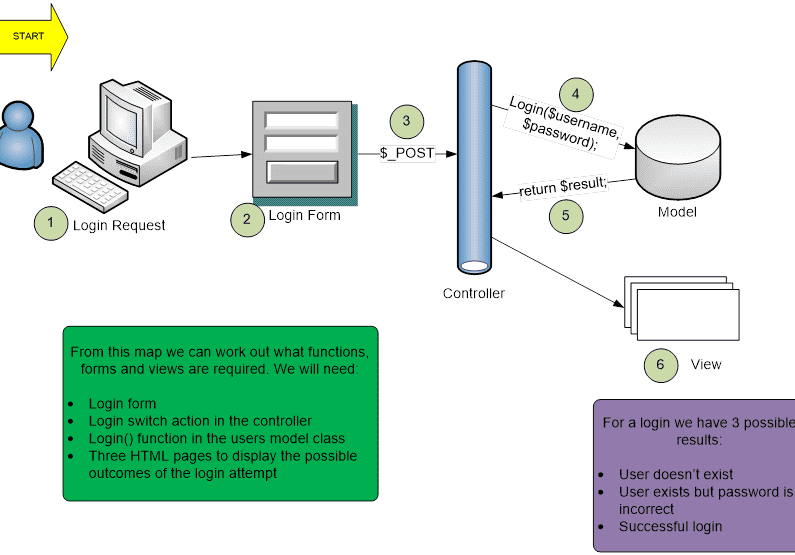

use case for logging in
Use case scenario for the login part of the application. Maps like this were created for all use case scenarios to aid with the MVC design.

The final design incorporated a controller class which acts as the first point of contact for the application, directing user input to the relevant places. A model class handles database interrogation. Database information is then supplied to a relevant view page by the controller to show the information to the user. This approach ensures no overlap of functionality, meaning the business logic can be kept in one place, away from the presentation and data. This also has the additional benefit of allowing programmers, designers and database administrators to all work on the same project without conflict.

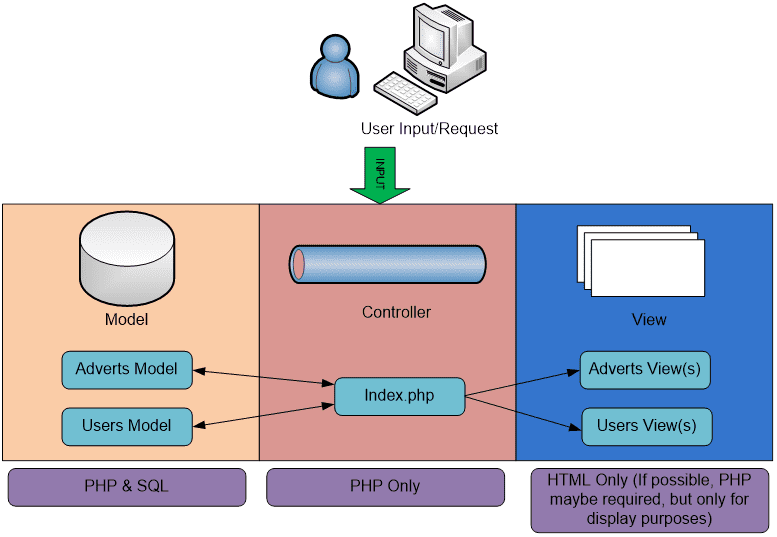

mvc design overview
Overview of the final MVC design highlighting the separation of concerns between programmer and designer.

Once this skeleton architecture was in place it became simpler to incorporate all of the features into the site by extending the functions of the controller and model classes, and adding the relevant views.

This was a very interesting project as it completed my understanding of web development, particularly HTTP features, HTML forms, N-Tier architecture and state management (sessions and cookies). The MVC approach made me understand the importance of looking at the design of a web-site before coding can begin. Particularly interesting were the security aspects involved in keeping a site free from attacks. Hidden fields were not used, and parameterised queries were utilised to prevent SQL injection attacks. All user input was validated at the client side using JavaScript to prevent any un-necessary server work, and output was sanitised to prevent XSS.

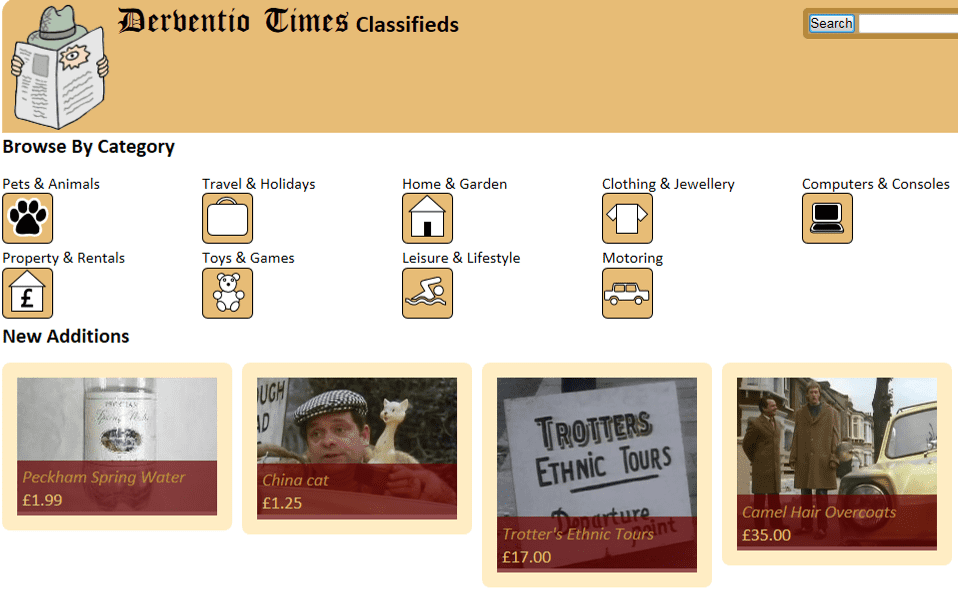

home page view
App home page view.
